Products
Home KIOSK PRINTERS

3-inch Kiosk Printers

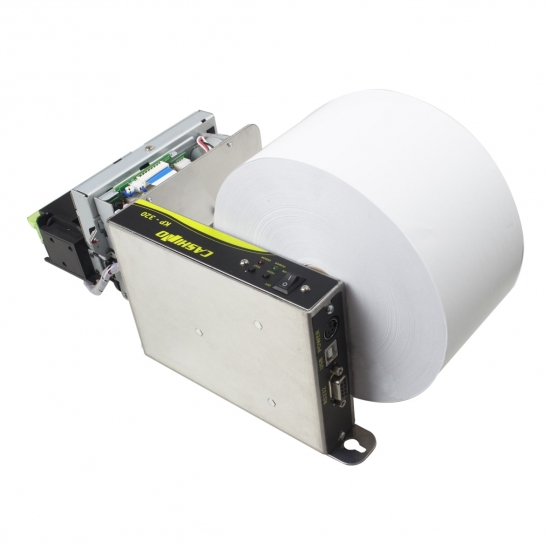

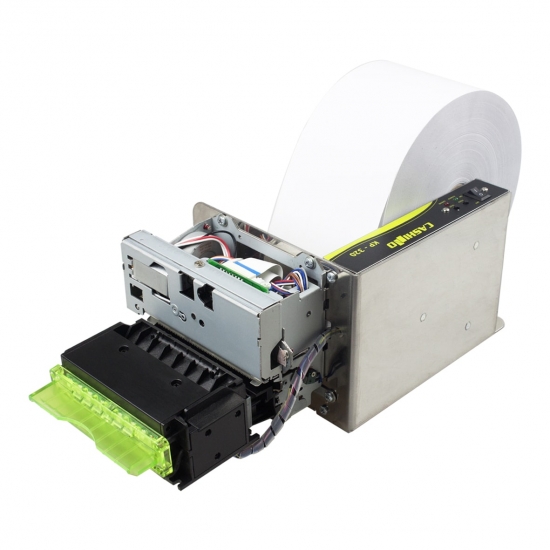

KP-320 Kiosk Thermal Receipt Printer with Auto Cutter

KP-320 Kiosk Thermal Receipt Printer with Auto Cutter

DC24V,80mm width,RS232+USB port ,150mm/s

  • Item No.:

    KP-320
  • Payment:

    Paypal, Western Union, T/T
  • Product origin:

    Xiamen, China
  • Shipping port:

    Xiamen
  • Lead Time:

    1-2weeks
  • Product details

  • Product specification

  • Application

KP-320 80MM Kiosk Thermal Receipt Printer with Auto Cutter


Basis information:

80MM kiosk thermal printer KP-320 is one of our idea printing solutions for self service kiosks, Available in 2" and 3" widths. This kiosk printer offers high quality 203 dpi printing speeds up to 150 mm/s for kiosk terminals. With a large paper roll capacity, the kiosk receipt/ticket printer offers up to 180mm paper roll diameter. The thermal kiosk printer comes with dual USB and serial interface, also Ethernet for your option.


Feature:

1. High printing speed up to 150mm/s

2. High printing speed quality at 203 DPI

3. Ticket width: from 58 to 82 mm

4. Auto Feeding/easy-paper loading

5. Full or partial cutter

6. Sensors: paper near end sensor, ticket presence sensor.








FAQ:

Q: Can I get samples for testing?
A: Yes, samples are available.

Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.

Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.

Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.

Specification:


Model No.

KP-320

Print

print mode

print width max.

print resolution

print speed max.

Thermal line printing

72mm/80mm

203 dpi

150mm/s(max.)

Character

Character set

GBK(24x24);

ASC:9x17,9x24,16x18,12x24

Font

Font A(12x24):32;

Font B(9x17):42; GBK:16

Paper spec.

Paper Type

Thermal paper / Label paper

Paper Diameter

180mm(Max.)

Paper Thickness

55-200μm

Paper Width

57.5±0.5mm/79.5±0.5mm/81.5±0.5mm

Roll Core Inner Diameter

18mm(min)

Paper supply method

Automatic feed (straight in & out)

Reliability

TPH

100km

Cutter

1,000,000 cuts or more

Detection

No paper detection

Paper near end detection

Paper presence

Black mark detection

Barcode

1D

EAN-13, EAN-8, CODE39, CODE93,

CODE128, CODEBAR, ITF, UPC A, UPC-E

2D

QR CODE

Text and graphic support

Figure, symbol, graph, curve,

icon, multi-languages

Command

Compatible with ESC/POS command set

Driver/SDK

Windows Driver, Linux Driver, Android SDK, Windows SDK

Interface

RS232+USB+Ethernet/RS232+USB

Power

24VDC , 2A

Temperature

Operating:-10°C~50°C

Storage:-20°C ~ 60°C

Humidity

Operating:10%RH~80%RH

Storage:10%~90%RH

Profile Size

137.5(W)x225.9(D)x109.5(H)mm

Applications:


1. Bank ATMs
2. Gaming/lottery machines
3. Self service kiosks
4. Info and multimedia kiosks
5. Currency change
6. Information stands
