Home >> Kiosk Printer >> 80mm Kiosk Printer >>KP-300H 3inch Thermal Kiosk Printer Module
ProductsMore
KP-300H 3inch Thermal Kiosk Printer Module

250mm/s,RS232+USB/RS232+USB+LAN interfaces, Full or partial cutter, DC24V

  • Item Code:

    KP-300H
  • Port:

    Xiamen
  • Payment:

    Paypal, Western Union, T/T
  • Lead Time:

    1-2weeks
GET SAMPLES AND QUOTE

Product Details

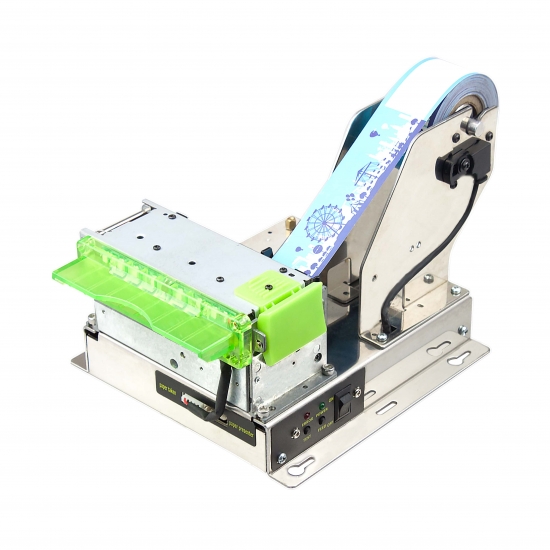

KP-300H 3inch thermal kiosk printer module


Basis information:

The thermal kiosk printer is a durable and compact kiosk printing machine. It comes fully equipped with all of the features for kiosk terminal: best-in-class components, autonomy and easy paper loading, extra large paper rolls, high printing speed for text, barcodes, logos and other graphics etc. These facilities makes the kiosk printing machine suitable for user-friendly applications like bank ATMs, gaming/lottery machines, info and multimedia kiosks and so on.


Feature:

1. Fully opening paper cover provides easy paper insert

2. Paper width: 58/60/80/82.5mm

3. High speed printing at 250mm/sec. (max.)

4. Paper roll diameter: 150mm (max.)

5. 200μm thick paper available (thickness from 55 to 200μm)

6. Interface: RS232+USB or RS232+USB+LAN

7. Auto feeding/ easy-paper loading

8. Auto cutter: full or partial cut

9. Paper near end sensor, paper end sensor, take out paper sensor



Specification:

Model No. KP-300H
Print print mode Thermal line printing
print width max. 72mm/80mm
print resolution 203 dpi
print speed max. 250mm/s (max)
Character Character set GBK(24x24);
ASCII:9x17,9x24,16x18,12x24
Font Font A(12x24):32;
Font B(9x17):42; GBK:16
Paper spec. Paper Type Thermal paper / Label paper
Paper Diameter 250mm(Max.)
Paper Thickness 0.055-0.09mm, 0.10-0.20mm
Paper Width 58/60/80/82.5mm
Paper Diameter(O.D):  Max.150mm,   Max.80mm as optional
Roll Core Inner Diameter 18mm(min)
Paper supply method Drop-in easy loading/ Automatic feed
Reliability TPH 100km
Cutter 0.055-0.09mm paper : 1million
0.10-0.20mm paper: 0.5milion
Detection No paper detection
Paper near end detection
Paper presence
Black mark detection
Label gap detection
Barcode 1D UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93
2D QR CODE
Command Compatible with ESC/POS command set
Driver/SDK Windows Driver, Linux Driver, Android SDK, Windows SDK
Interface USB+RS232/ USB+RS232+LAN(as optional)
Power adapter 24VDC , 2A
Temperature Operating:-10°C~50°C
Storage:-20°C ~ 60°C
Humidity Operating:10%RH~80%RH
Storage:10%~90%RH
External dimensions w/o paper presenter  141.1(W)x251(D)x180.5(H)mm
with paper presenter 141.1(W)x312.4(D)x180.5(H)mm



Applications:

1. Bank ATMs

2. Gaming/lottery machines

3. Car park payment machines

4. Info and multimedia kiosks

5. Currency change

6. Information stands


FAQ:

Q: Can I get samples for testing?
A: Yes, samples are available.

Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.

Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.

Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.
