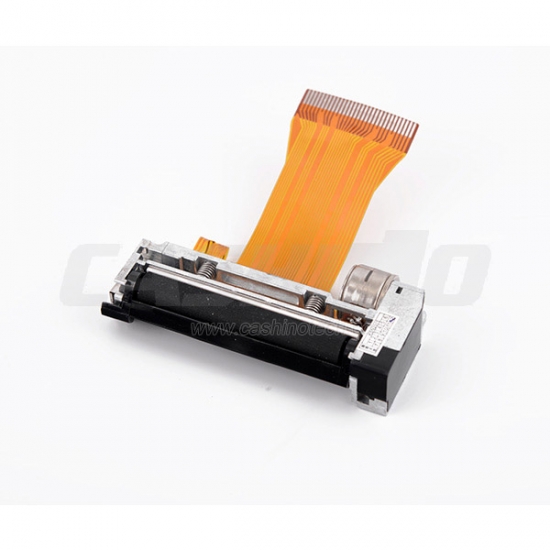

TP-628-054 2 inch thermal printer mechanism

TP-628-054 2 inch thermal printer mechanism

Compatible with FTP-628MCL-054

  • Item No.:

    TP-628-054
  • Payment:

    Paypal, Western Union, T/T
  • Product origin:

    Xiamen, China
  • Shipping port:

    Xiamen
  • Lead Time:

    1-2weeks
  • Product details

  • Product specification

TP-628-054 2inch thermal printer head


Feature:
Compatible with FTP-628MCL054
Paper width:57±1mm
Easy paper load
Compact design
Low Noise
With paper detect
Mechanism life(50KM)
High speed(up to 70mm/s,8.5VDC)
Printing width 48mm




FAQ:


Q: About 2 inch thermal printer mechanism samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.

Specification:

Type

TP-628-054

Print method

Thermal dot line printing

Resolution (dots/mm)

8

Dot per line (dots/line)

384

Speed (mm/sec)

70(8.5VDC)

Print width/Paper width(mm)

48/58

Head temperature detect

Via thermistor

Thermal Printer head  detect

Via photo interrupter

Paper detect

Via photo interrupter

Life span

Pulses

100 million

Structure  life (km)

50

Operation voltage range (V)

Head logic (Vdd)

3.0 ~ 5.5

Head and motor drive(Vp)

4.2 ~ 8.5

Dimensions (length X width X depth) (mm)

67.3L*31.5W*18.6D

Weight (g)

Approach 41.5
