Home PANEL PRINTERS

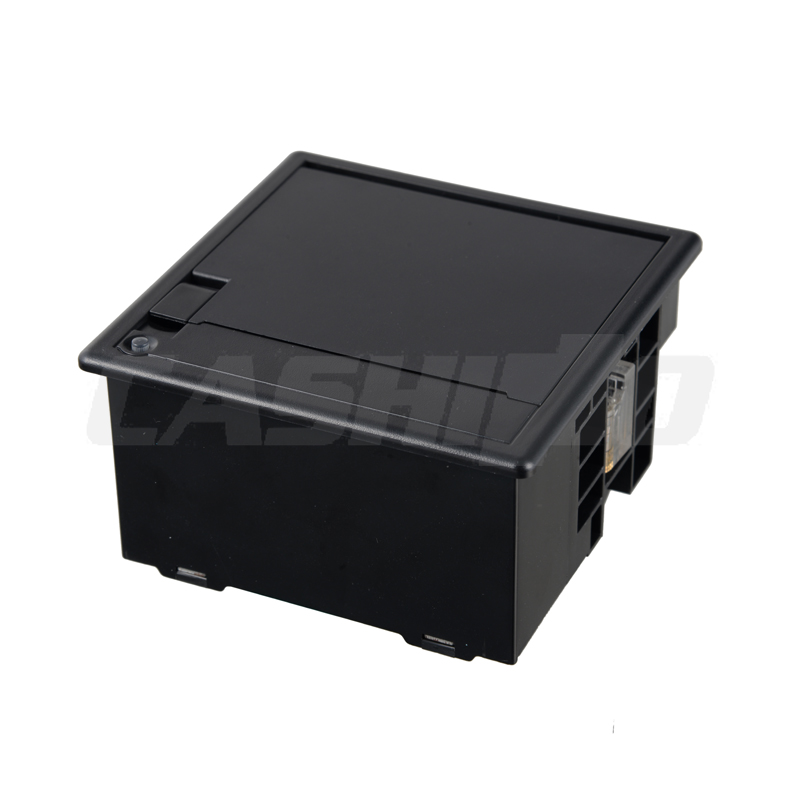

2-inch Panel printer

OEM provided 58mm thermal mini panel receipt printer with RS232,TTL DC5-9V

OEM provided 58mm thermal mini panel receipt printer with RS232,TTL DC5-9V

Serial(RS-232,TTL)/Parallel/USB, DC5-9V/12VDC

Front fixing

  • Item No.:

    CSN-A5L
  • Payment:

    Paypal, Western Union, T/T
  • Product origin:

    Xiamen, China
  • Color:

    Black/White
  • Shipping port:

    Xiamen
  • Lead Time:

    1-2weeks
  • Product details

  • Product specification

  • Application

OEM provided 58mm thermal mini panel receipt printer with RS232,TTL DC5-9V


Feature:

Interface: Serial(RS-232,TTL)/Parallel/USB

Power supply: DC5-9V/12VDC

Color:Black/White

Front fixing



58mm thermal mini panel receipt printer with RS232,TTL DC5-9V

FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.


Specification:


Print

Printing Method

Thermal Line

Printing Speed

90mm/s(Max.)

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GBK,BIG-5

Print Font

ANK:8x16,9x17,9x24,12×24GBK: 16×16,24×24

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Roll Diameter

Max: 50 mm

Reliability

MCBF

5 million lines

Interface

Serial(RS-232,TTL)/Parallel/USB

Insert Depth

53.5mm

Power Supply (Adapter)

DC5V-9V/12V

Physical

Outline Dimension (WxDxH)

88x87x57mm

InstallationPortSize

80 x 80.5mm

Color

Beige/Black

Environment

Operating Temp

0°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%

Application:


1). Weighing Scale Machines
