3-inch Panel printer with cutter

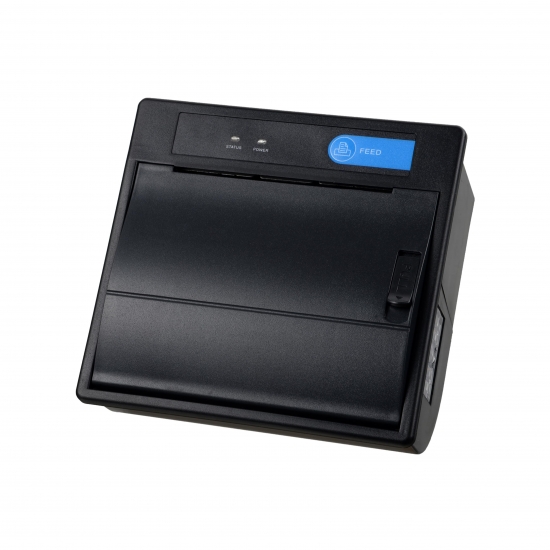

EP-360CH 80mm width high-speed mini panel thermal printer with auto-cutter

EP-360CH 80mm width high-speed mini panel thermal printer with auto-cutter

DC24V,150mm/s,Serial+USB


  • Item No.:

    EP-360CH
  • Payment:

    Paypal, Western Union, T/T
  • Product origin:

    Xiamen, China
  • Color:

    Black/White
  • Shipping port:

    Xiamen
  • Lead Time:

    1-2weeks
  • Product details

  • Product specification

  • Application

EP-360CH 80mm width high speed minin thermal panel printer with cutter

EP-360CH is a 80mm embedded thermal printer with auto cutter, which is widely used in convenience store, supermarkets,

restaurants, bank and so on.


Feature:

1. Interface:(RS232/TTL)+USB

2. Power supply: DC24V

3. Easily embedded to any kinds of instruments and meters

4. Smart appearance

5. Easy paper loading

6. Low noise thermal printing

7. Front panel make paper replacement easily

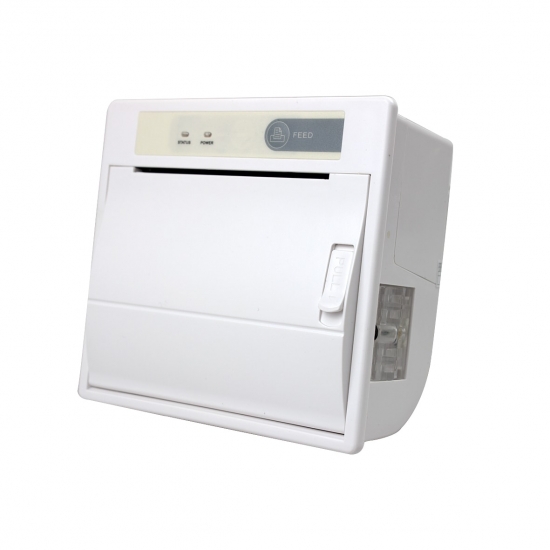

8. Color:Black/White



Company Information:

We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer

Our Services:

portable bluetooth printer


FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.

Specification:


Model No. EP-360CH
Print Printing method Thermal Line Printing
Printing speed 150mm/s
Resolution 203dpi(8dots/mm)
Printing width 72mm
Character Character Set ASCII,GBK,BIG5
Print Font ANK:9×17,12×24,Chinese:24×24
Character per line Font A:48;Font B:64
Paper spec. Paper Type Thermal Paper
Paper Width 79.5±0.5mm
Paper Thickness 0.055-0.09mm
Paper Roll Diameter Max:60mm
Roll Core Inner Diameter 13mm(min)
Reliability TPH 100km or more(12.5% print ratio)
Cutter 1,000,000 cuts or more
Cutting Method Full/Partial cut

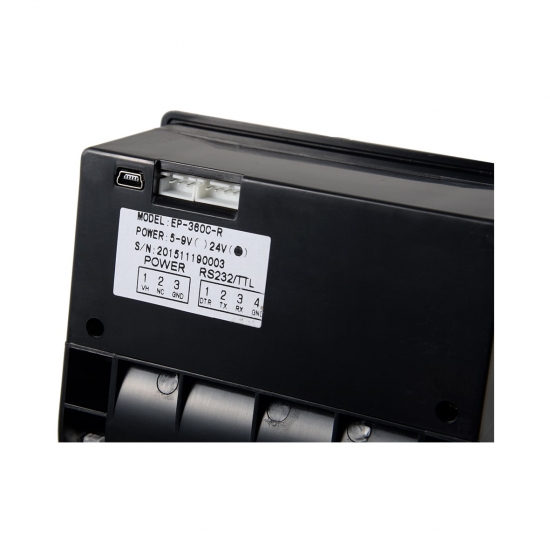

Interface Serial(RS232/TTL)+USB, Cash Drawer port (optional)
Power Supply DC24,  2A(average), 5A(peak)
Barcode 1D UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR,CODE93,CODE128
2D PDF417,QR Code
Physical Outline Dimension (WxLxH) 122×115.5×66mm
Installation Port Size(WxL) 116.3×110mm
Insert Depth 56mm
Color Black/White
Environment Operating Temp 0°C~50°C
Operating Humidity 10%~80%
Storage Temp -20°C~60°C
Storage Humidity 10%~90%
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
5. Kiosk
