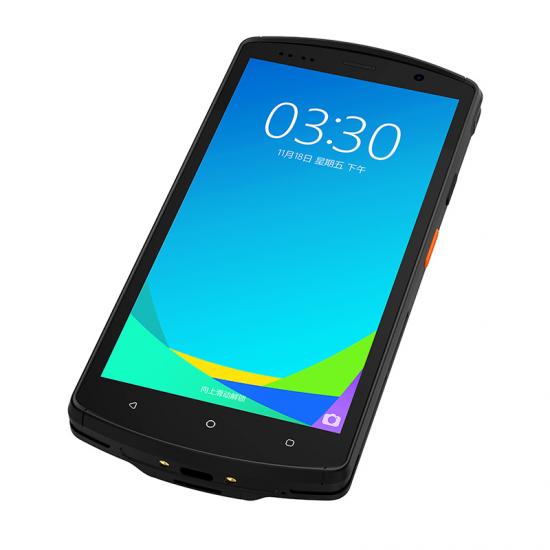

CSN-S1 Cashino 5.5 Inch Mobile Computer PDA Android 12 All in One POS System

CSN-S1 Cashino 5.5 Inch Mobile Computer PDA Android 12 All in One POS System

CSN-S1 is a new generation of high performance, ultra-thin Smart handheld data terminal, with fully performance and experience feeling. The screen is 5.5inch full HD screen, which is portable and comfortable to hold. It has more stable connection, lower delay, larger capacity and super industrial protection performance.  The configuration and usage experience is much better among industry level in all directions.

  • Item No.:

    CSN-S1
  • Payment:

    PayPal,Western Union,T/T
  • Product origin:

    Xiamen,China
  • Shipping port:

    Xiamen,China
  • Product details

  • Product specification

  • Application

5.5" Mobile Computer PDA

1.Strong performance, let the operation flow

2.4G full network + high-speed Wi-Fi, unimpeded data transmission

3.With professional scan engine enable fast code scan

4.5000mAh large battery and 18W fast charge, no battery anxiety anymore

5.Ultra-high screen ratio, better visual interaction

6.More durable Resistant, More ease in harsh working environment

7.PDAF phase focusing technology,  HD "dual photography" more clear

CPU Quad-A53-2.0GHz
OS Android 12.0
Memory 4GB RAM+64GB ROM
6GB RAM+128GB ROM(optional)
Display 5.5”HD, Industrial grade IPS HD, 720×1440
Capacitive multi-touch touch, support glove mode.
Battery Removable Lithium Battery,4.35V/4000mAh
Dimensions 162.5(L)×77.5(W)×14.5(H)mm
Weight 260 g(with battery)
SIM card slot 2 x Nano SIM card
User Storage Expansion Support(SIM card and TF two out of three)
Ports 1×Waterproof Type C ( support USB 2.0, OTG, Fast charging)
Expansion Ports Back POGO PIN: Trigger handle
Bottom POGO PIN: USB 2.0, 5V/3A
Buttons 1×Power(lock screen) button
1×Volume(+/-) button
1×Custom button
2×Scan buttons
Prompts Vibration reminder, Multi-Color LED reminder, audio reminder
Audio Built-in speaker (1.5W), receiver, dual microphone (noise reduction)
Sensor G-Sensor, Light Sensor ,Proximity Sensor, Gyroscope, E-compass
Fingerprint Module Support SPI port
Working Temperature -20℃ ~+60℃
Storage temperature -40℃ ~ +70℃
Humidity 5%-95% RH (No condensation)
Protection IP65
Drop Specification 1.2m
Roller Drop 1000 times of roller drops from a height of 0.5 meters (equivalent to 2000 impacts)
Electrostatic Protection ±15 kV air discharge, ±8 kV direct discharge

1.logistics

2.express

3.warehouse inventory

4.manufacturing

5.retail e-commerce

6.public utilities

7.asset management
