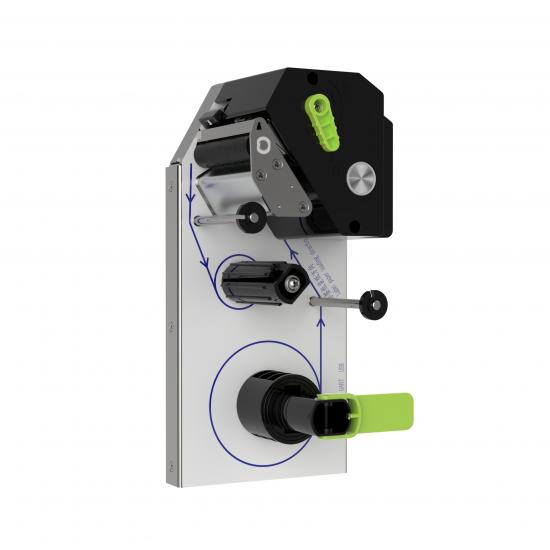

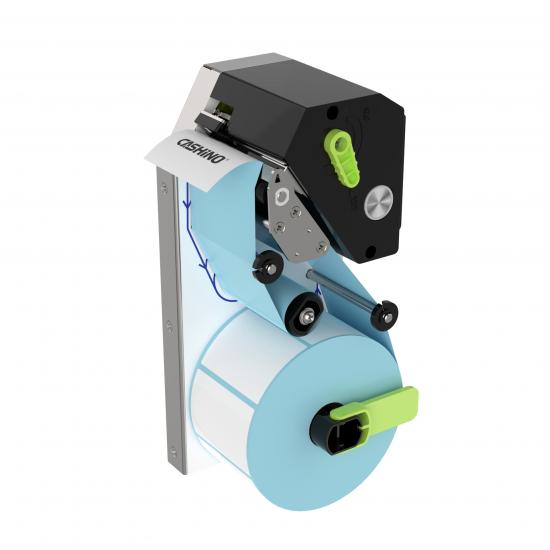

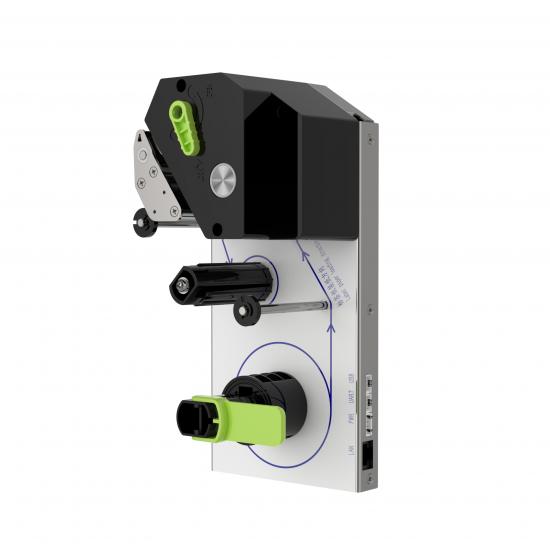

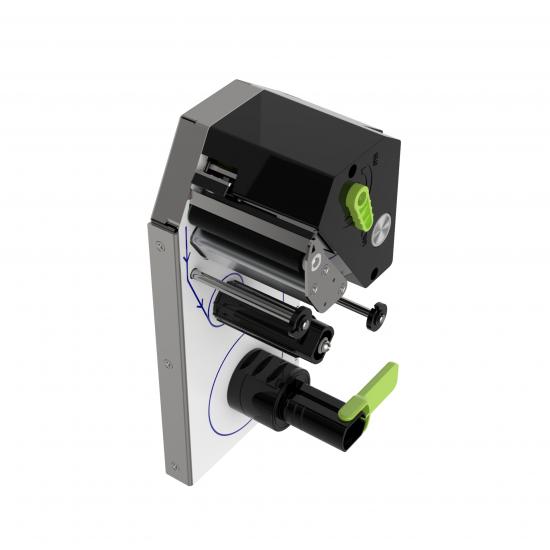

56mm Kiosk Label Printer LPM-562 Embedded Thermal Module

56mm Kiosk Label Printer LPM-562 Embedded Thermal Module

LPM-562 is a new label printer designed by Cashino and it's widely used for printing labels in medical device & weighing scales

  • Payment:

    EXW Xiamen
  • Product origin:

    Xiamen China
  • Color:

    Black
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7 working days
  • Product details

  • Product specification

  • Application

Low noise direct thermal printing
With label peeling function and backing
paper recycling function
Open channel design (easy to install the medium)
Support large diameter paper roll ф100mm(Max)
product model LPM-562
Printing Print mode Direct Thermal
Print width  56mm
Print resolution 203dpi
Print speed max. 120mm/s
Storage SRAM  2M bytes
Flash 256K bytes
Paper Type Thermal label paper
Width 25~62mm
Roll paper diameter(O.D) 100mm
Thickness 0.06mm~0.15mm
Character set Font Font A:12x24;Font B:9x17 GBK:24x24
Code page 48
Barocde 1D barocde UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D barocde QRCode,PDF417
Interface Standard USB+RS232/TTL
Optional LAN
Sensor Standard TPH overheat detection, platen in position detection, paper existing detection, paper taken detection, seam mark detection
Optional
Reliability Cutting method Peel off
Cutter life
TPH life  100km
Power Adapter AC AC100V-240V 50/60Hz
DC DC24V/2A
Cash drawer control
Dimensions (WxLxH)mm 202*107*93.5mm
Weight 1.1kg
Emulation(Compatiable) TSPL、ESC/POS
Software Driver Windows Driver
SDK K-Lalel editor,Android SDK,Windows SDK Andoid SDK
Environment Temperature Operating:0°C~45°C
Storage:-20°C ~ 60°C
Humidity Operating:20%RH~85%RH
Storage:10%~90%RH

1.Catering

2.Logistics

3.Retail

4.Medical

5.Weighing Scale
