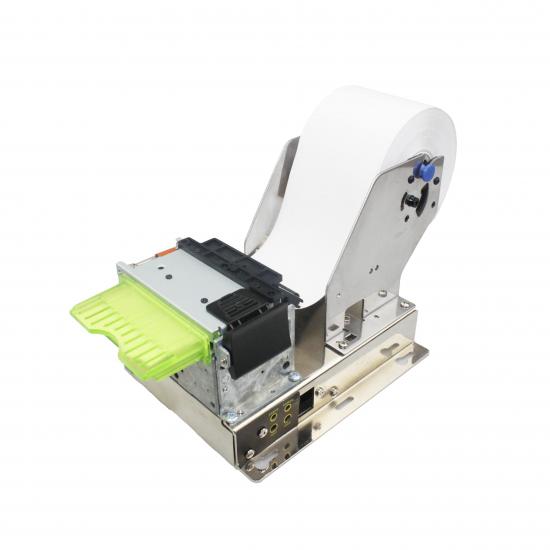

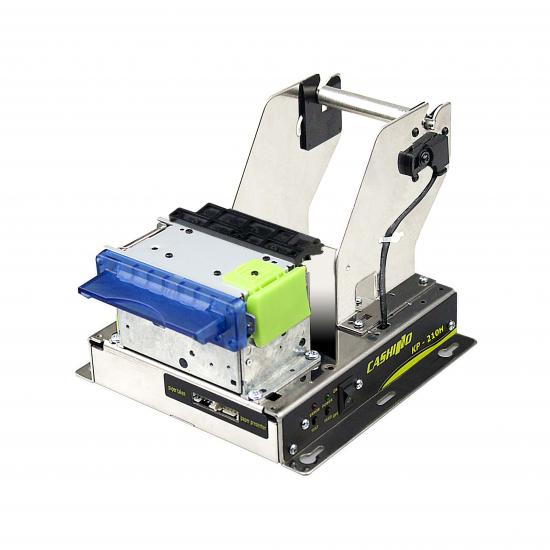

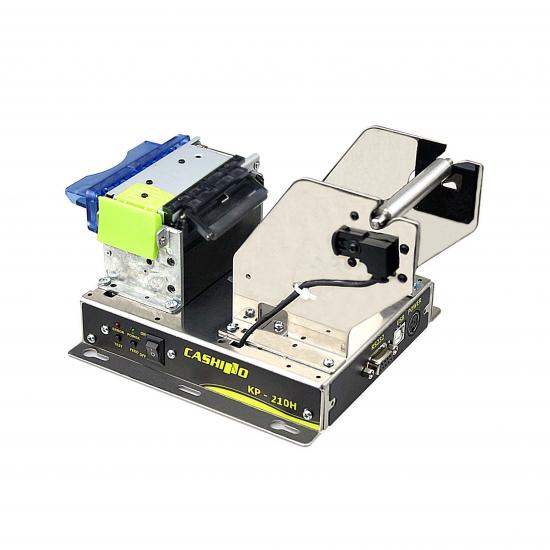

KP-210H 58mm auto cutting kiosk thermal printer

KP-210H 58mm auto cutting kiosk thermal printer

auto cutter, 250mm/s printing speed,RS232,USB,LAN interfaces, DC24V

  • Item No.:

    KP-210H
  • Payment:

    Paypal, Western Union, T/T
  • Product origin:

    Xiamen, China
  • Shipping port:

    Xiamen
  • Lead Time:

    1-2 days for sample
  • Product details

  • Product specification

  • Application

KP-210H  58mm auto cutting kiosk thermal printer



Basis information:

It is a durable and compact auto cutting kiosk thermal printer and comes fully equipped with all of the features for kiosk terminal: best-in-class components, autonomy and easy paper loading, extra large paper rolls, high printing speed for text, barcodes, logos and other graphics etc. These facilities makes the kiosk printing machine suitable for user-friendly applications like bank ATMs, gaming/lottery machines, info and multimedia kiosks and so on.


Feature:

1. Fully opening paper cover provides easy paper insert

2. Paper width: 25-60mm

3. High speed printing at 250mm/sec. (max.)

4. Paper roll diameter: 150mm (max.)

5. 200μm thick paper available (thickness from 55 to 200μm)

6. Interface: RS232+USB or RS232+USB+LAN

7. Auto feeding/ easy-paper loading

8. Auto cutter: full or partial cut

9. Paper near end sensor, paper end sensor, take out paper sensor,cover open,cutter jam,paper taken sensor






FAQ:

Q: Can I get samples for testing?
A: Yes, samples are available.

Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.

Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.

Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.


Specification:


Products model  KP-210H
Printing Printing method Direct Thermal
Print width(max.) 54mm
Print resolution 203 dpi(432dots/line)
Print speed(max.) 250mm/s
Paper Type Thermal paper/Thermal label
Width 25-60mm
Roll paper diameter(O.D) 80mm/150mm
Roll core inner diameter(Min.) 13mm/18mm
Thickness 0.055 to 0.20mm
Character set Font Font A:12x24;Font B:9x17 GBK:24x24
Barcode 1D barcode UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D barcodes QR code
Interface Standard RS232C+USB+LAN RS232C+USB
Sensor Standard Paper end, paper near end ,cover open,cutter jam,paper taken
Optional Black mark,Label gap
Auto-cutter Cutting method Full/Partial cut
Cutter life 1,000,000cuts
Power suppy AC AC100V-240V 50/60Hz
DC 24VDC/2A
Reliability TPH Life 100km
Dimensions (WxDxH mm) Horizontal Ø80mm: 141.1x195.5x109 Ø150mm: 141.1x195.5x115
Emulation (Compatible) ESC/POS
Software Driver  Windows Driver,Linux Driver,OPOS Driver
SDK Windows SDK,Android SDK
Environment Temperature Operating:0°C~50°C
Storage:-20°C ~ 60°C
Humidity Operating:10%RH~80%RH
Storage:10%~90%RH

Applications:


1. Bank ATM

2. Gaming/lottery machines

3. Car park payment machines

4. Info and multimedia kiosks

5. Currency change

6. Information stands

7. Queuing machines
